Product Number

IXM-DX1-K-NN-1 (Cockpit), IXM-RS1-KB-NN-1 (Racing Seat)

Component 1

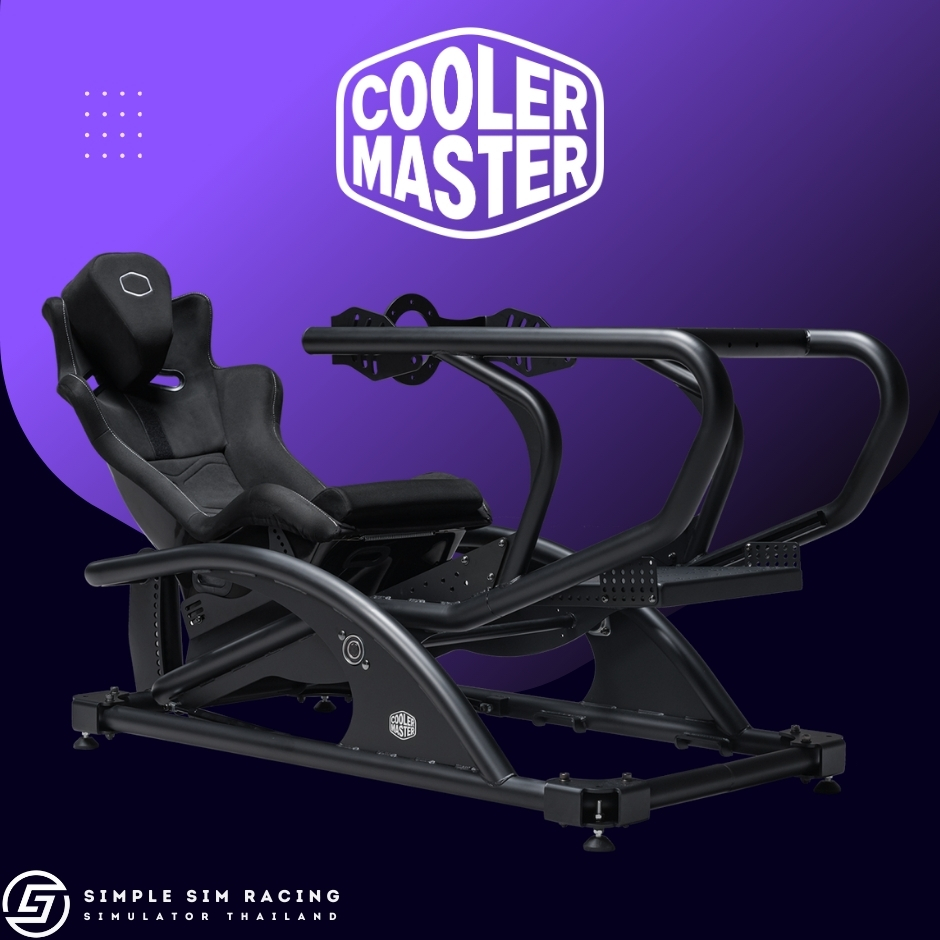

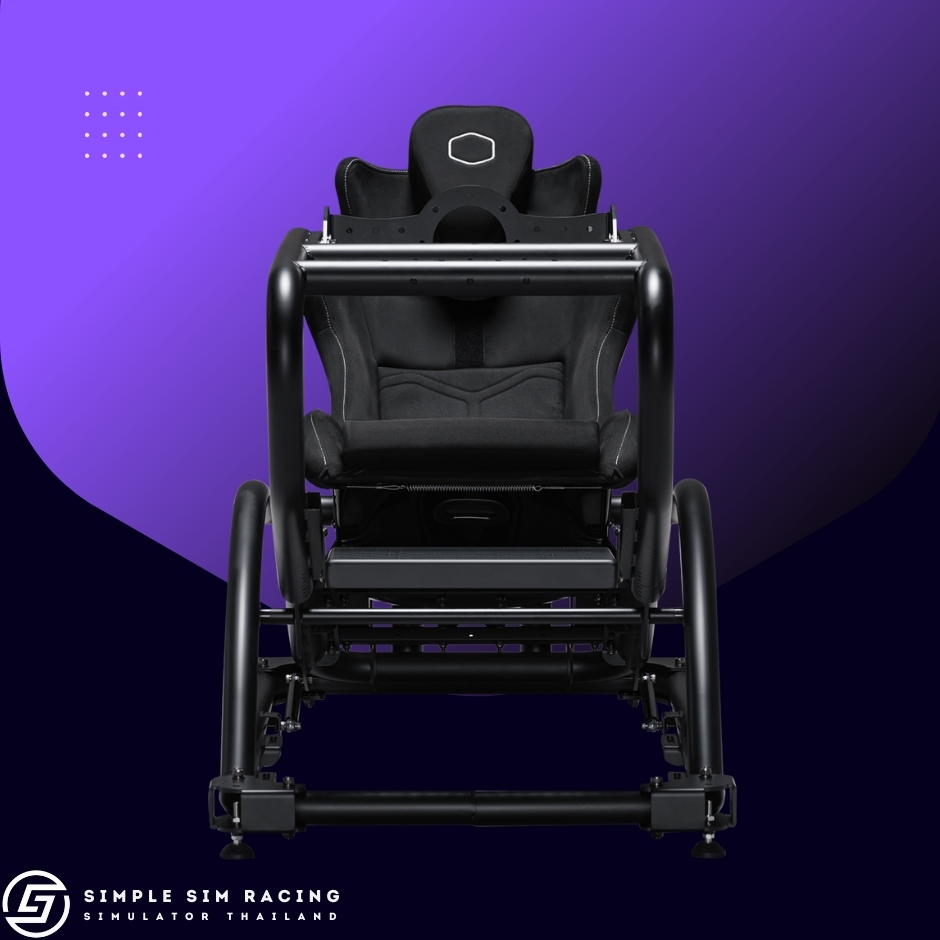

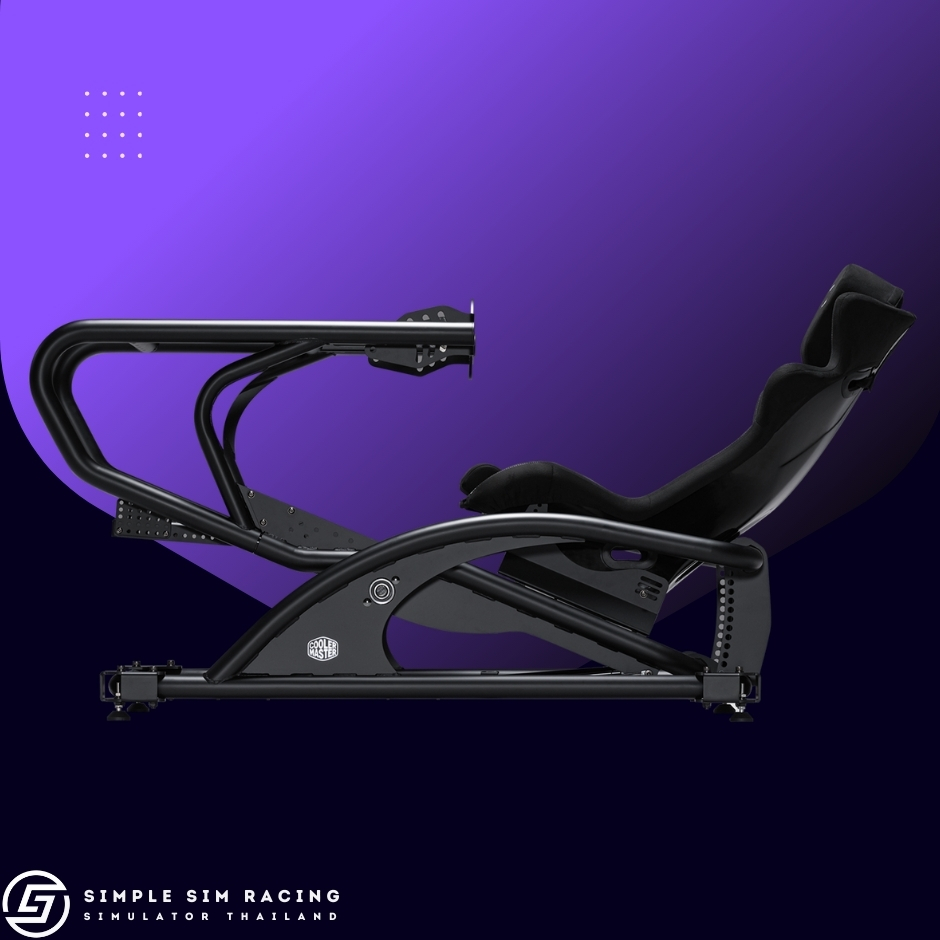

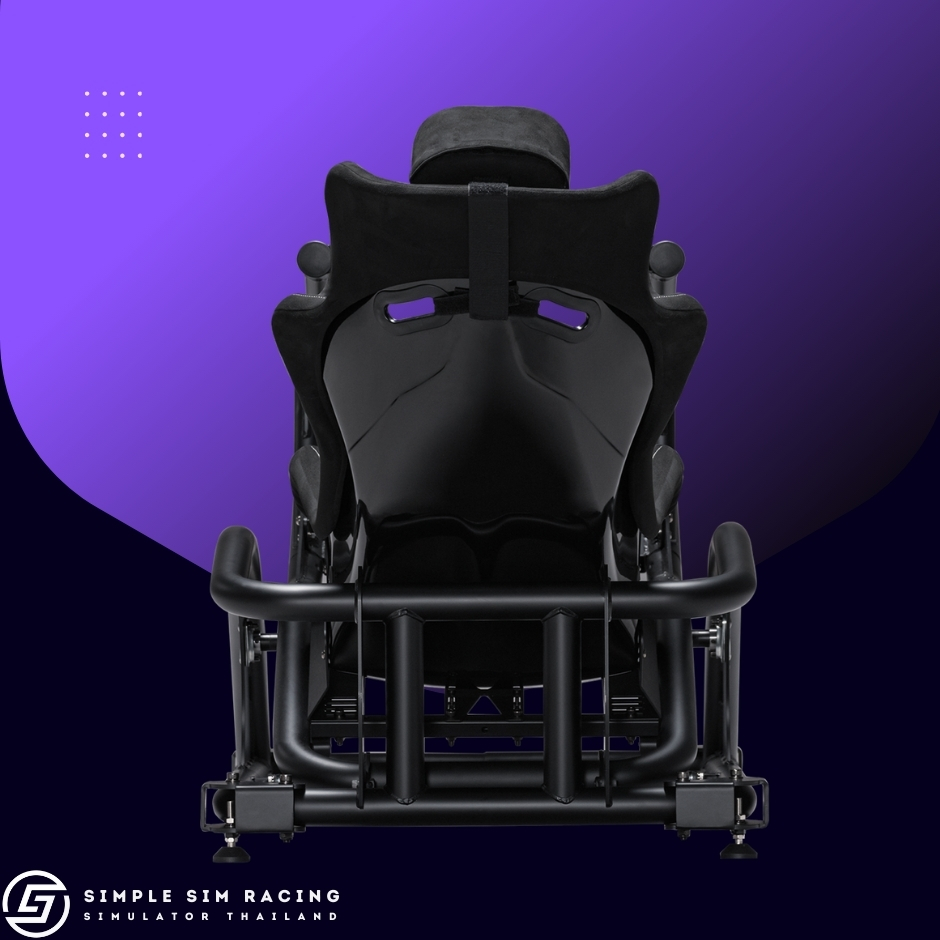

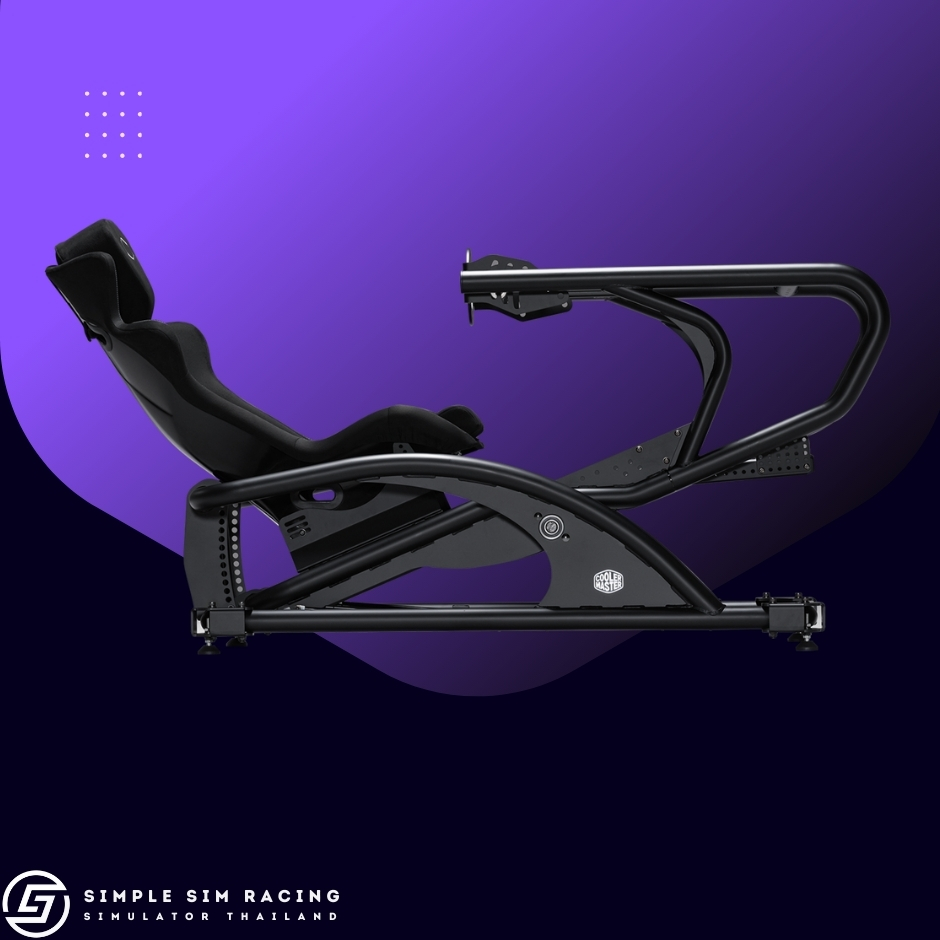

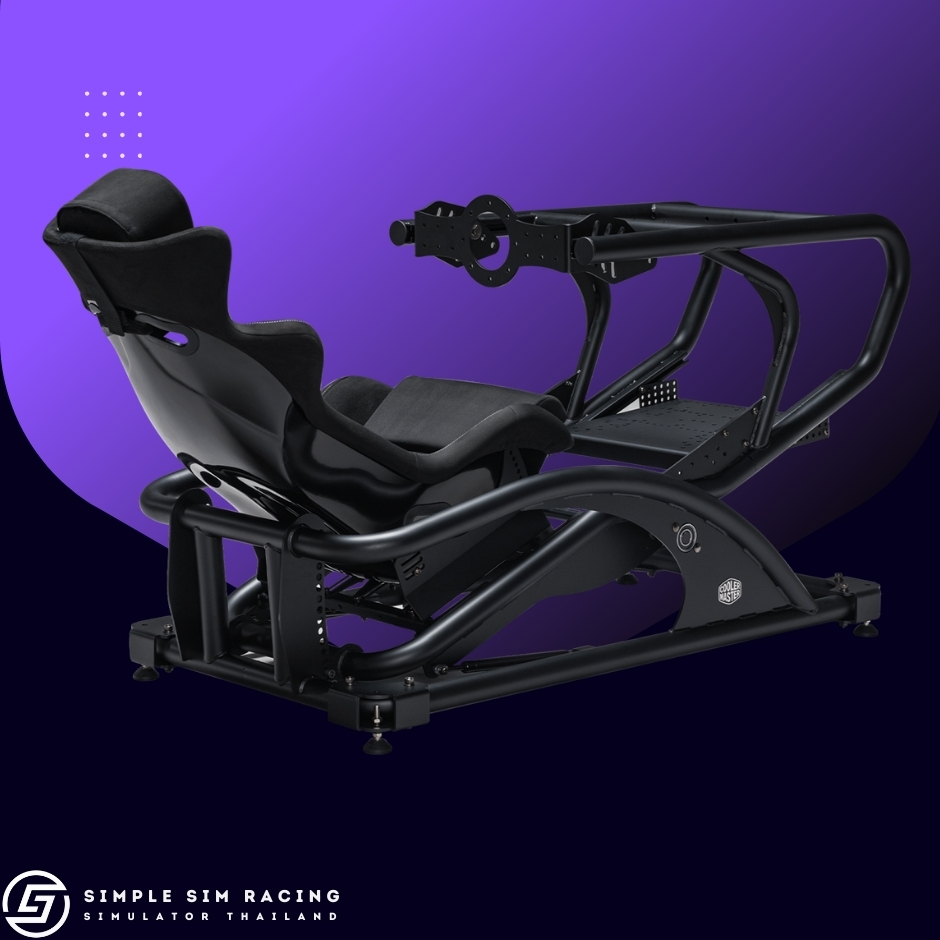

Dyn X - Cockpit

Ergonomics Group

5 - 99th Percentile Men

Assembled Dimensions (Upmost Position)

1707mm x 756mm x 1044mm (LxWxH)

Assembled Dimensions (Downmost Position)

1591mm x 756mm x 998mm (LxWxH)

Ready for Motion Actuator System

Yes

Buttkicker Mount

Yes

Included Steering Wheel Mount

Front Mount

Number of Driving Positions

14

Frame Tubing Material

Steel (JIS STKM 13A)

Frame Tubing Diameter

50.8mm

Frame Tubing Wall Thickness

2mm

Gusset Thickness

5mm

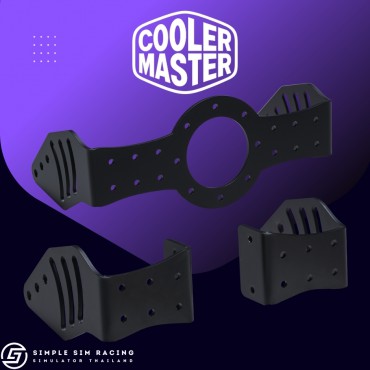

Steering Wheel Mount Material (All Mounts)

Steel

Steering Wheel Mount Material Thickness (All Mounts)

6mm

Pedal Tray Material

Aluminum (5052)

Pedal Tray Material Thickness

5mm

Seat Mount Material

Steel

Seat Mount Material Thickness

3mm

Steering Wheel Slide (Forward/Back)

300mm

Steering Wheel Mounting Positions (Front & Side Mount)

6 (3 regular + 3 with mount inverted)

Steering Wheel Mount Degrees of Adjustment (Front & Side Mount)

Position 1: 50°, Position 2: 47°, Position 3: 44°, Total: 80° (regular + inverted)

Steering Wheel Mount Height Adjustment (Front & Side Mount)

81mm (6 positions)

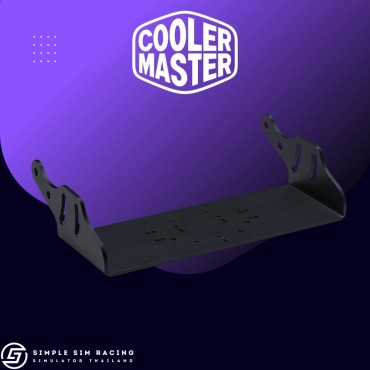

Steering Wheel Mounting Positions (Tray Mount)

4 (2 regular + 2 with mount inverted)

Steering Wheel Mount Degrees of Adjustment (Tray Mount)

Position 1: 26°, Position 2: 24°, Total: 60° (regular + inverted)

Steering Wheel Mount Height Adjustment (Tray Mount)

140mm (4 positions)

Pedal Tray Slide (Forward/Back)

400mm

Pedal Tray Tilt (Up/Down)

± 45°

Pedal Tray Lift (Up/Down)

±100mm

Seat Slide (Forward/Backward)

150mm

Seat Tilt (Up/Down)

3 - 27°

Seat Lift (Up/Down)

30mm

Number of Frame Tilt Positions

14

Frame Tilt

3 - 22°

Combined Frame/Seat Tilt

6 - 49°

Component 2

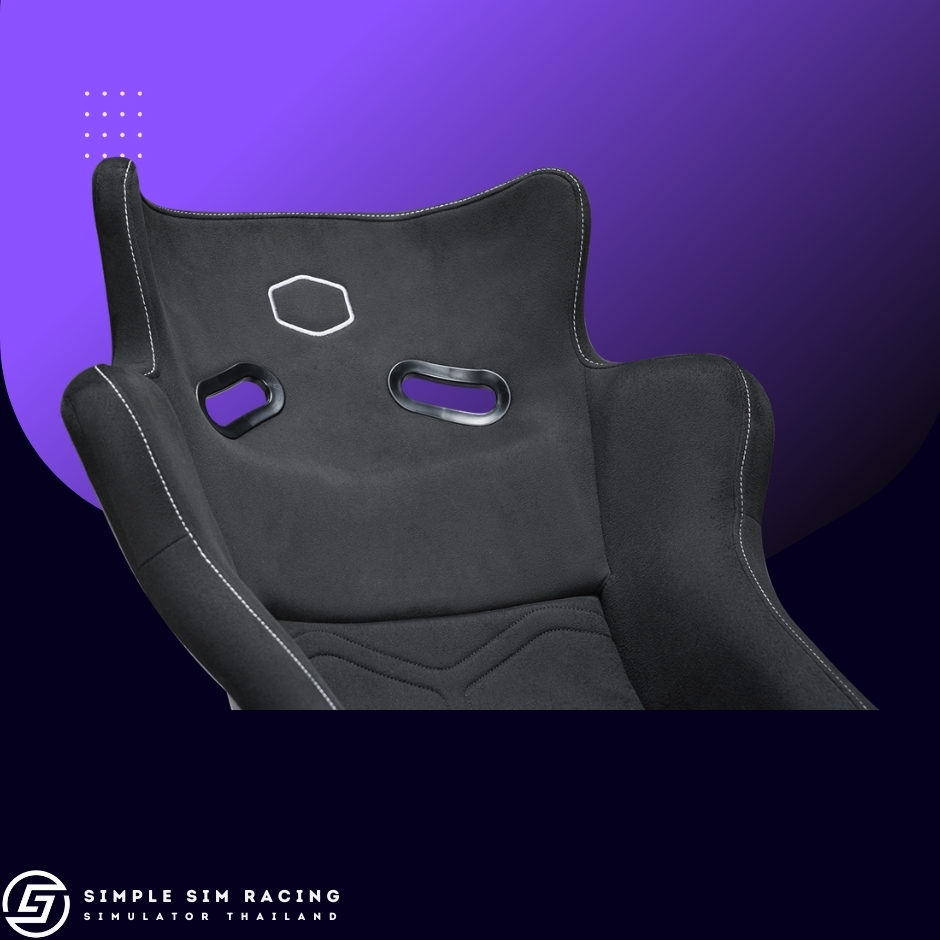

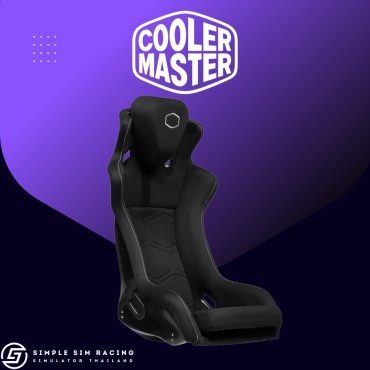

Dyn X - Racing Seat

Seat Shell Material

Fiberglass Reinforced Plastic (FRP)

Seat Fabric Material

Premium Synthetic Suede (Eco-suede)

Seat Padding

Multi-density Foam / Shock-absorbent Foam

Harness Slots

5

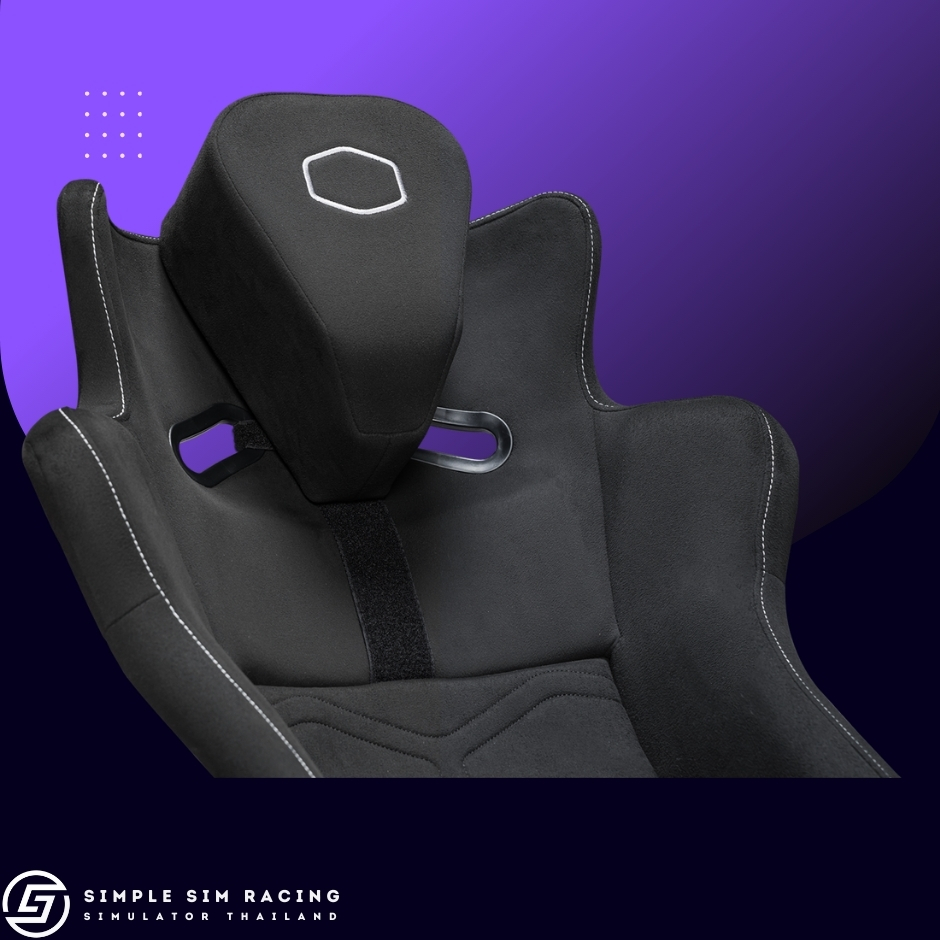

Headrest

Detachable and Adjustable
