FEATURES

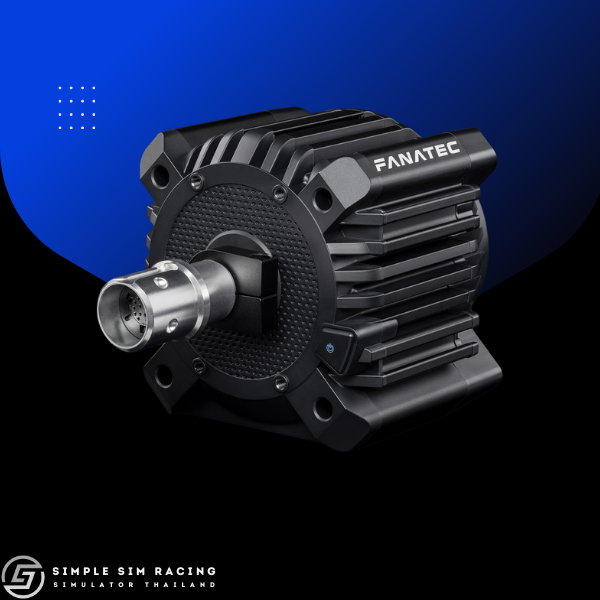

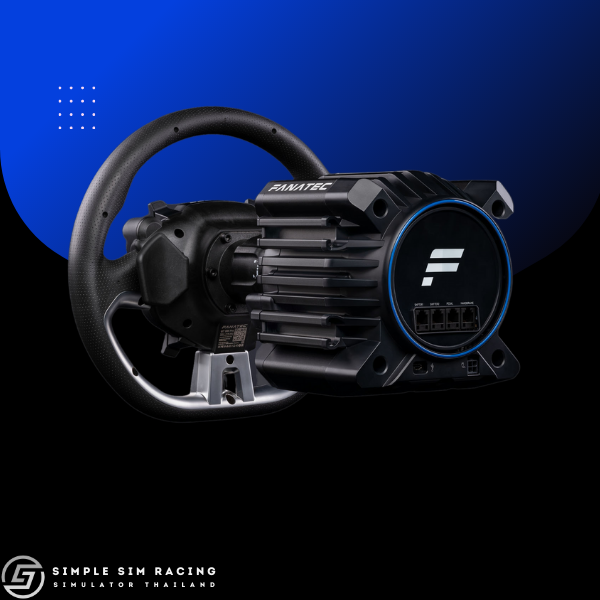

Gran Turismo DD Pro Wheel Base:

• The official Direct Drive Wheel for Gran Turismo

• Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles

• Direct-Drive system delivers instant, detailed force feedback

• Linear, consistent performance

• Boost Kit 180 (included) unlocks maximum strength (8 Nm peak torque)

• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness

• Full Fanatec SDK support ensures compatibility out of the box for all major racing games

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor, same as Podium Series

• Steering axis made from carbon fibre-enhanced composite

• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base

• Automotive-grade quick release, exchangeable

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

• Table clamp included, supports 5 to 60 mm table thickness

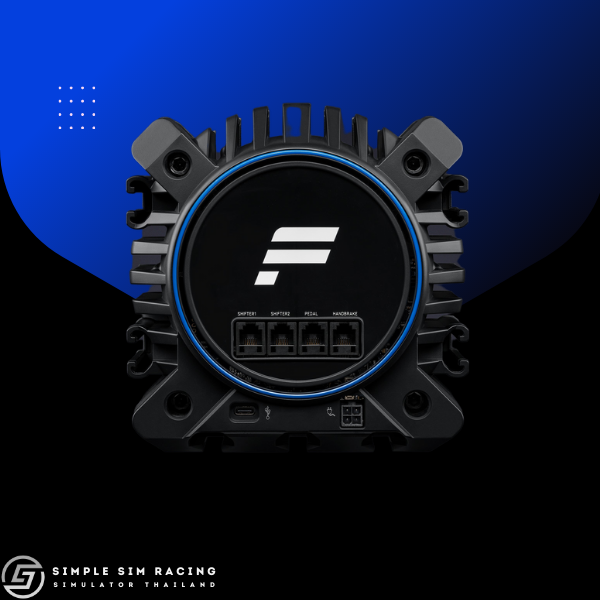

• Ports:

- Power supply

- USB-C to console / PC

- Shifter 1

- Shifter 2 (Sequential only)

- Pedals

- Handbrake

• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

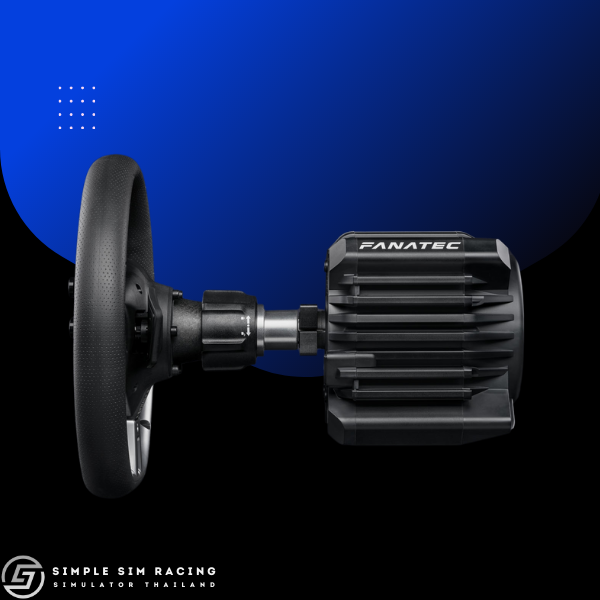

Steering wheel for Gran Turismo DD Pro:

• Designed by Polyphony Digital

• Tactile rubber grip with blue centre stripe

• Compact 280 mm diameter and light weight for crisp response

• Diffused RevLED strip (yellow, red, and blue LEDs)White OLED display for Tuning Menu access and telemetry output (where supported)

• 5-way directional stick for menu navigation

• Four additional 5-way directional sticks

• Ergonomic shifter paddles

• 11 buttons optimised for the PlayStation® interface

• Fiberglass-reinforced plastic construction

• Exchangeable QR1 Lite Wheel-Side quick release system

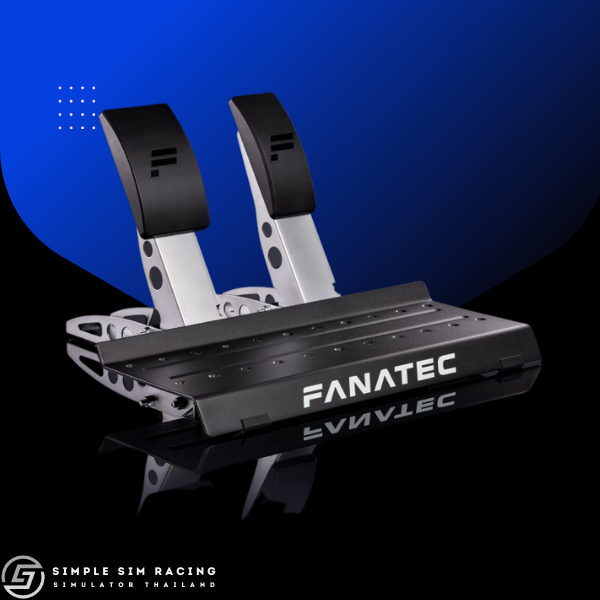

Pedals for Gran Turismo DD Pro:

• two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)All-metal construction (excluding pedal faces).

• Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)

• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)

• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability

• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel

• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)

• CSL Pedals Clutch Kit provides a third pedal for the lowest price

• CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics

• Pedal position can be adjusted sideways along heel rest

• Height-adjustable pedal faces

• Modular design means inverted mounting to a rig is possible

• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface

• Pearl chrome plating on pedal bases and arms

• Black powder coating on heel rest

• Pedals connect directly to Gran Turismo DD Pro Wheel Base

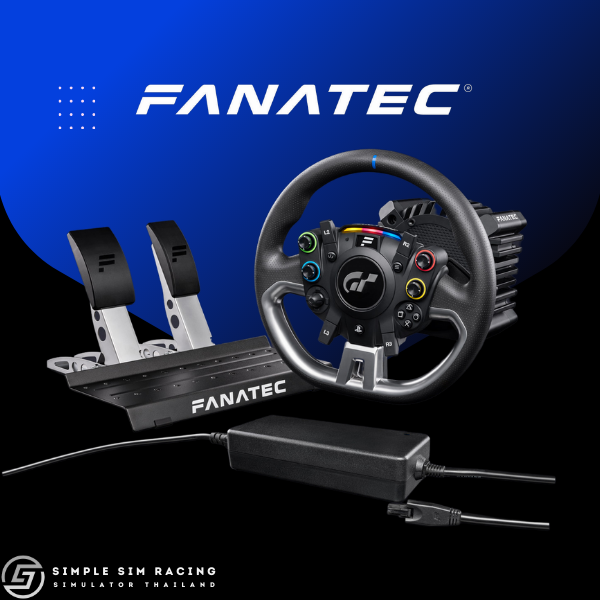

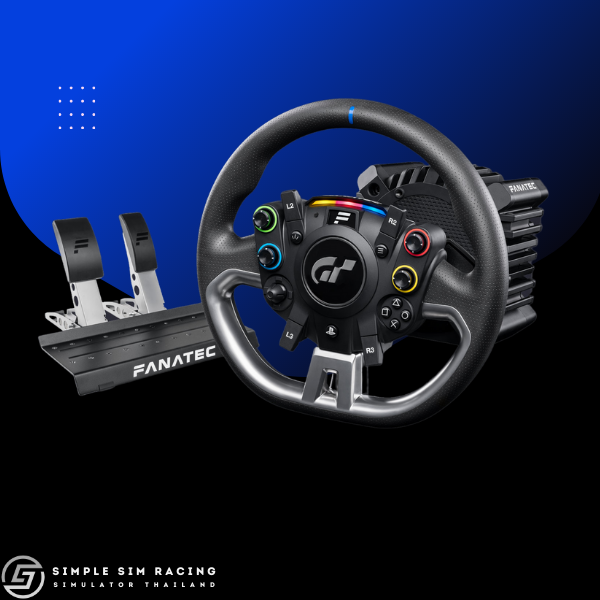

WHAT'S INCLUDED

• Gran Turismo DD Pro direct drive wheel base

• Steering wheel for Gran Turismo DD Pro

• Pedals for Gran Turismo DD Pro (two-pedal set)

• Table clamp

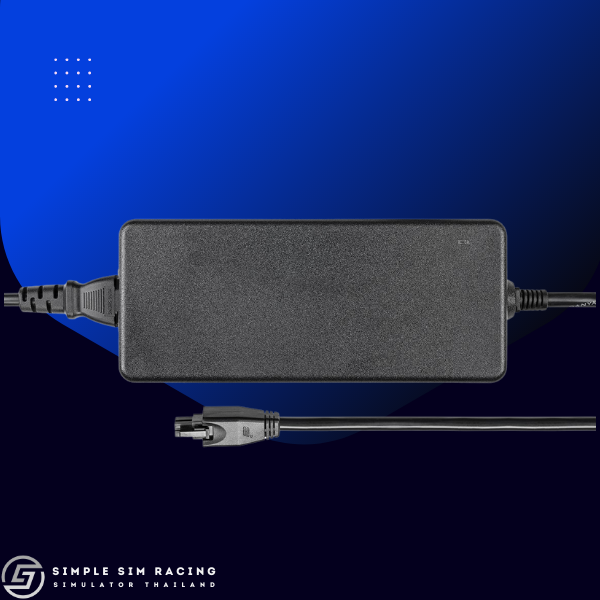

• Boost Kit 180 power supply (regional, packaged separately, 90W power supply not included)

• 4x T-nuts for rail mount system

• USB cable (Type-C to Type-A)

• RJ12 connection cable for pedals

• Pedal spacers for hard-mounting

• Torx Key

• Quick Guide
