FEATURES

• Direct Drive servo motor

  • Custom-designed in Germany for the ClubSport DD specifically for sim racing

  • 12 Nm consistent torque

  • Optimised skew angle on rotor magnets reduces cogging torque

  • Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness

• FullForce technology

  • New force feedback protocol developed for Fanatec Direct Drive

  • Super low-latency detail effects through fine motor frequency control

• Passively cooled Wheel Base

  • Most thermally stable Wheel Base in its class

  • Consistent performance under the most extreme conditions

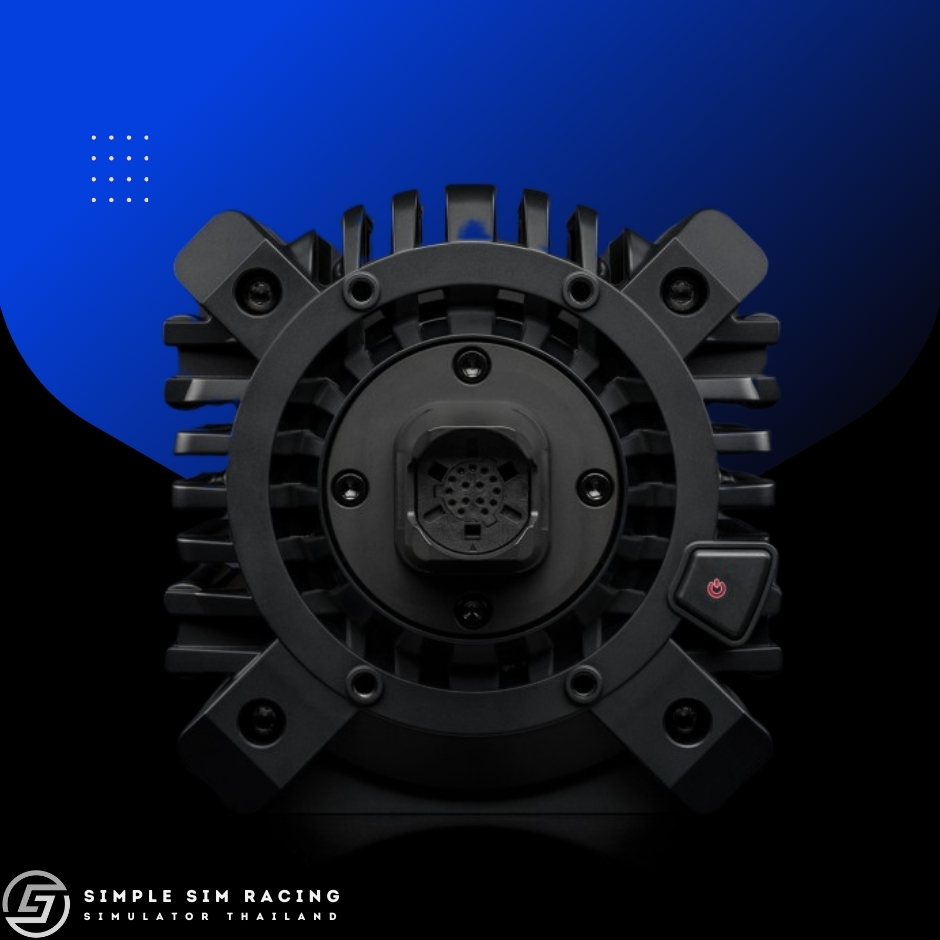

• QR2

  • Wheel Base optimised for QR2 from the ground-up

  • Electronics module integrated with shaft

  • Diecast aluminium with CNC-machined finish

  • Motorsport-derived quick release system

  • QR1 downgrade possible (sold separately - available soon)

  • Designed for Windows PC, can be used on Xbox when fitted with an Xbox licensed Steering Wheel

• Full Fanatec SDK support ensures compatibility out of the box for all major racing games

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor

• Rotation: 2520 degrees (electronically limited, adjustable)

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)

• Compatible with entire Fanatec ecosystem (see Compatibility section for details)

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

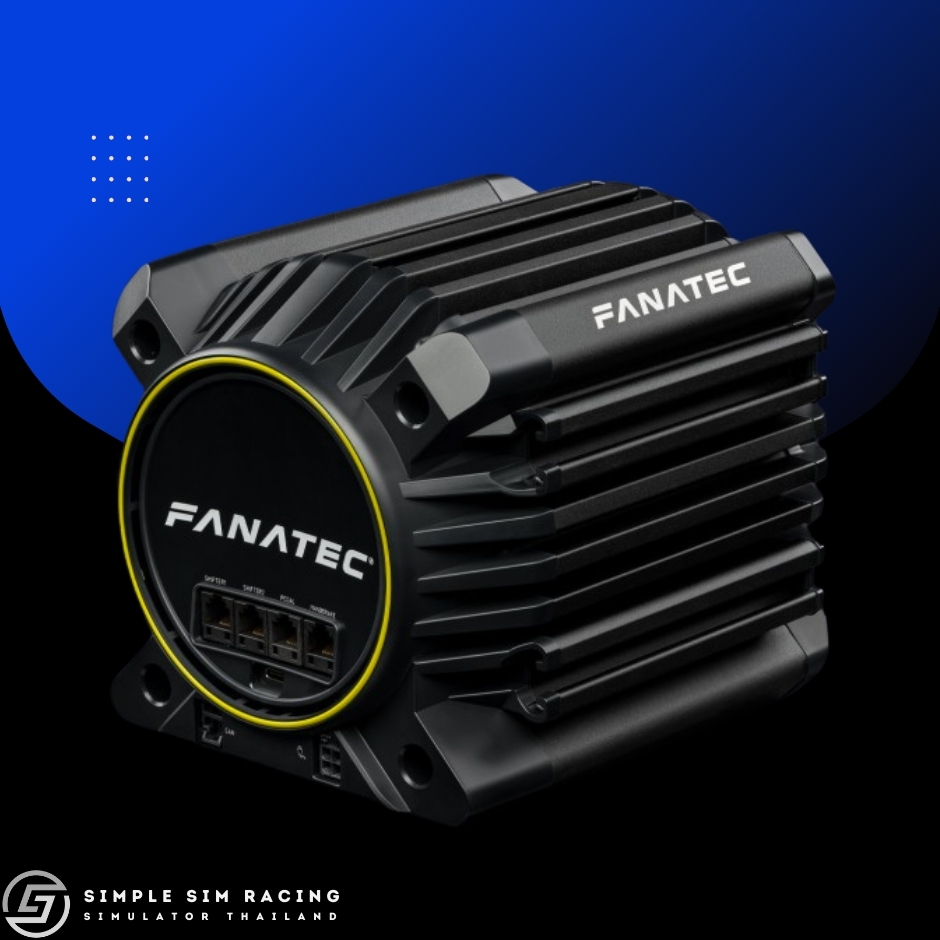

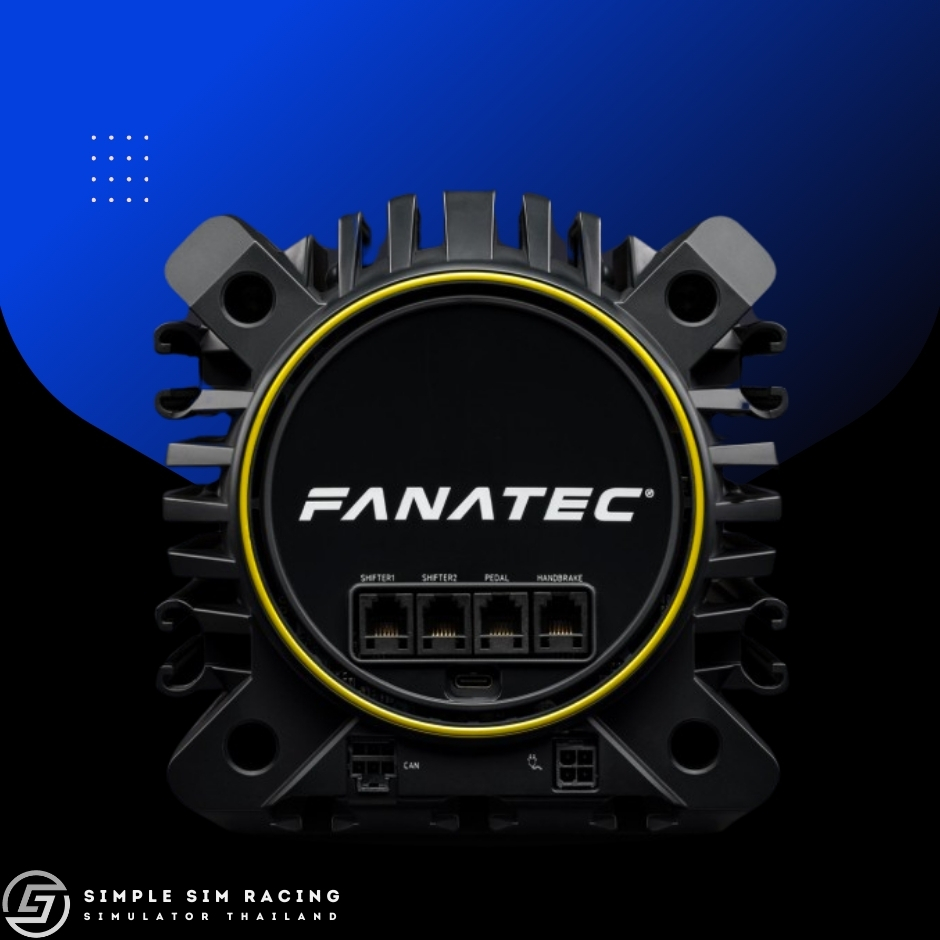

• Ports:

  • Power supply

  • USB-C to PC / console

  • Shifter 1

  • Shifter 2 (Sequential only)

  • Pedals

  • Handbrake

  • CAN (for future Fanatec peripherals)

• Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
