FEATURES

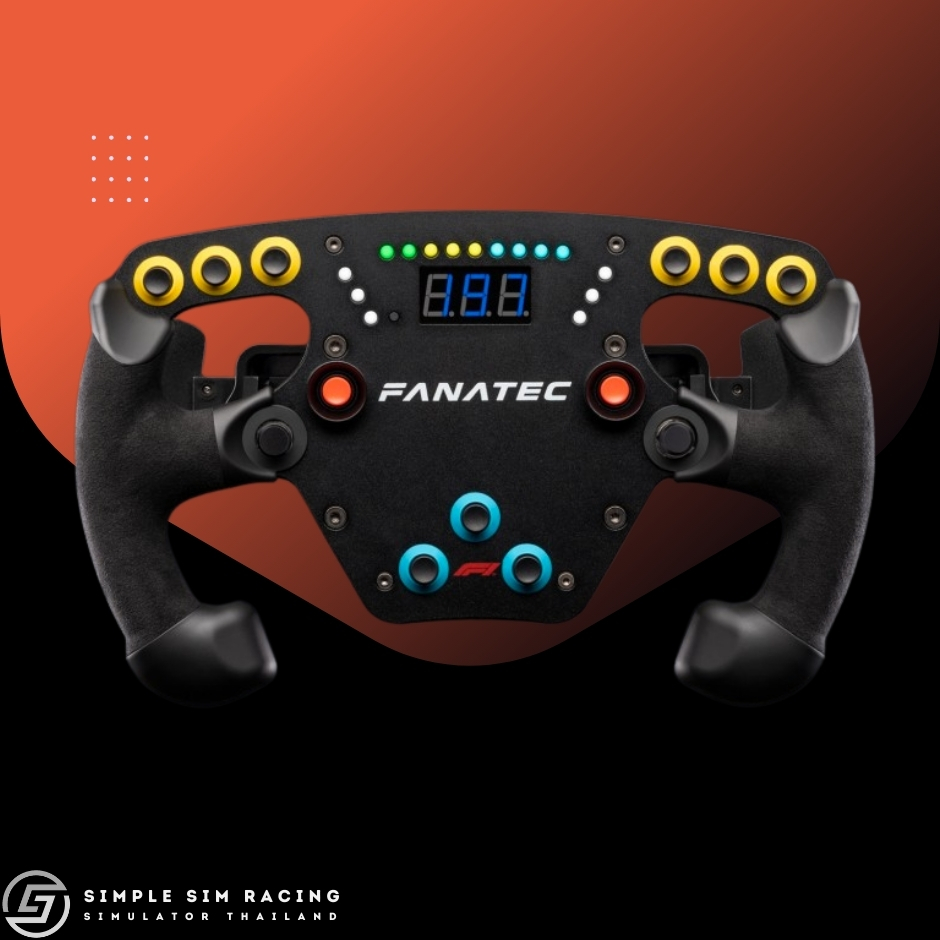

ClubSport Steering Wheel F1® Esports V2:

• Officially licensed by Formula 1™

• Replica of a steering wheel as used in formula cars. The compact diameter of 270 mm allows fast movements and reactions

• Durable metal construction

• Genuine Alcantara® grips

• Magnetic paddle shifters (CSL Elite Magnetic Paddle Module, preinstalled)

• 3 mm-thick, black anodised aluminium paddle plates

• Paddle module cage made of polymer composite

• Neodymium magnets

• Easily upgradable to ClubSport Magnetic Paddle Module or Podium Advanced Paddle Module (sold separately)

• 11 buttons

• Analogue joystick

• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality

• Two vibration motors integrated with the grips, controllable through wheel Tuning Menu (SHO) or by game through Fanatec SDK

• RevLEDs with nine multi-colour RGB LEDs to show motor RPM and optimal shifting point, programmable by the user via FanaLab and by game developers via the Fanatec SDK

• Two FlagLEDs with three multi-colour RGB LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, programmable by the user via FanaLab and by game developers via the Fanatec SDK

• Vibrant blue LED display to show telemetry data such as speed or gear selection (in supported games)

• Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base / racing wheel for details)

• Improved electronics means wheel is firmware-updatable

• Exchangeable aluminium quick release

• Steering wheel weight: approx. 1255 g (including QR1 Wheel-Side)

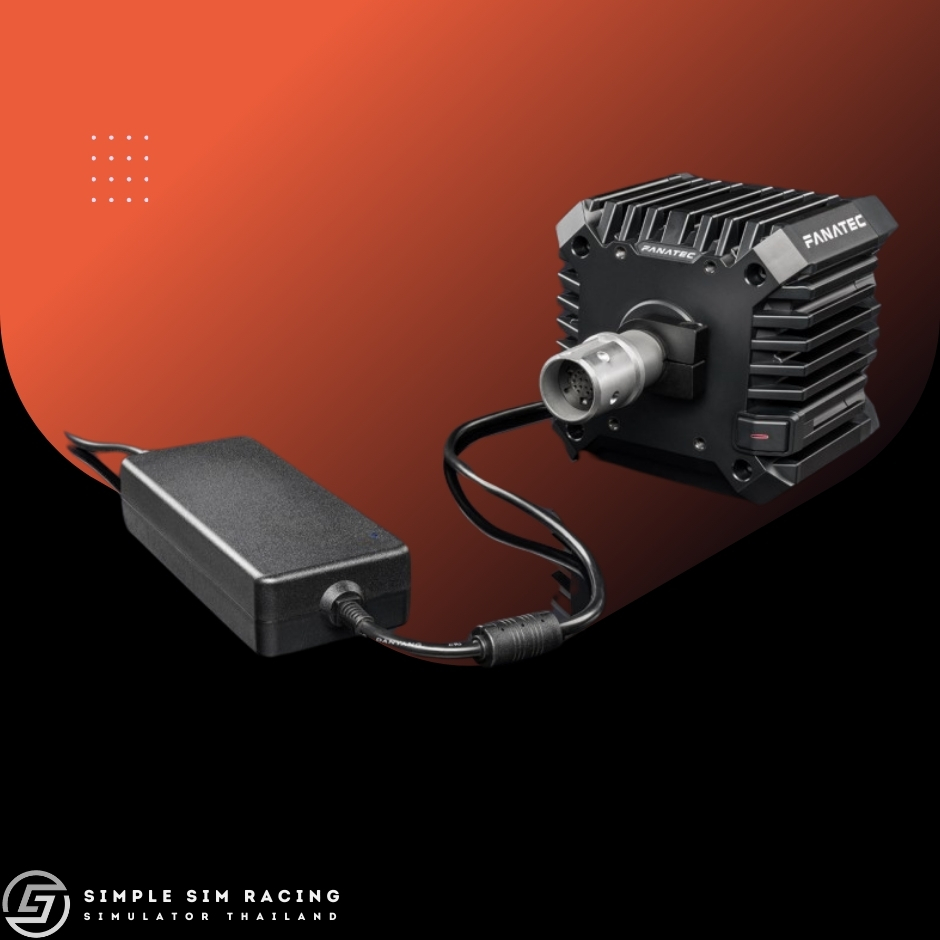

CSL DD:

• Direct-Drive system delivers instant, detailed force feedback

• Boost Kit 180 included

• Linear, consistent performance (8 Nm peak torque)

• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness

• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor, same as Podium Series

• Steering axis made from carbon fibre-enhanced composite

• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps

• Rotation: 2520 degrees (electronically limited, adjustable)

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels

• Automotive-grade quick release, exchangeable

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

• Optional table clamp (sold separately), supports 5 to 60 mm table thickness

• Ports:

• Power supply

• USB-C to PC / console

• Fanatec DataPort-C

• Shifter 1

• Shifter 2 (Sequential only)

• Pedal

• Handbrake

• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

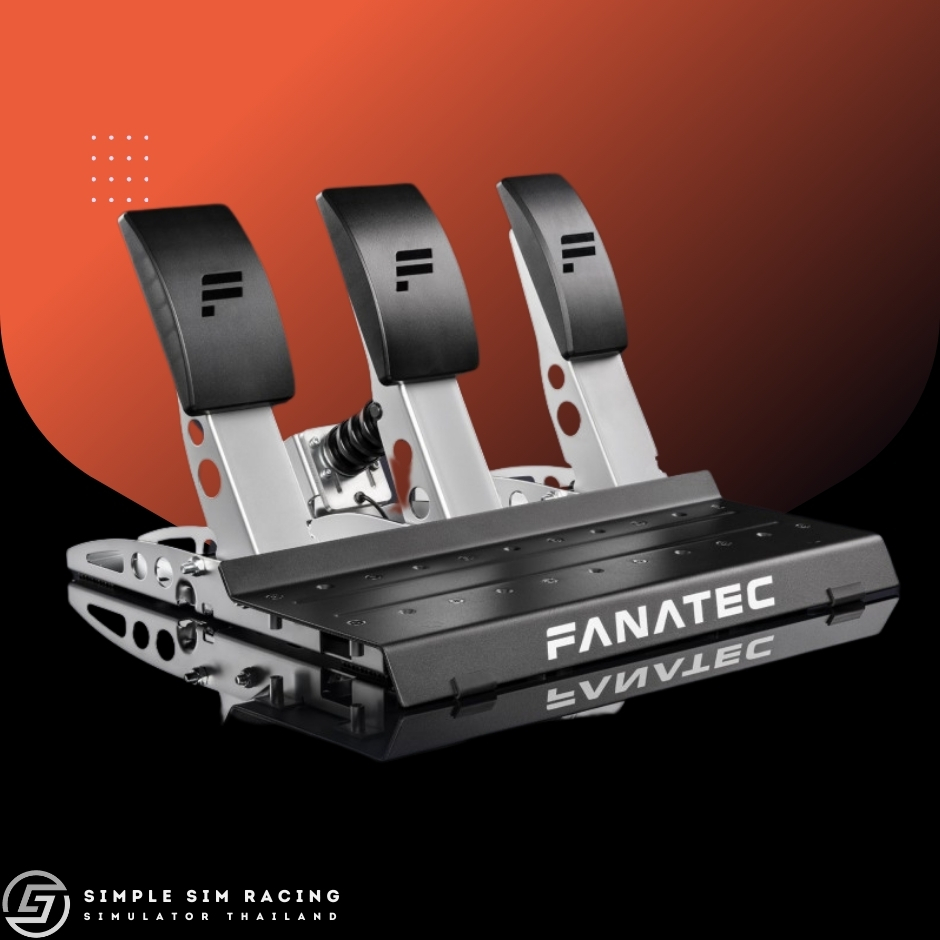

CSL Pedals + CSL Pedals Load Cell Kit:

• Three-pedal set (clutch, brake, throttle)

• All-metal construction (excluding pedal faces)

• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)

• Contactless Hall sensors (12-bit) on both clutch and throttle for high precision and durability

• Clutch pedal spring is stiffer than throttle pedal spring

• Pedal position can be adjusted sideways along heel rest

• Height-adjustable pedal faces

• Modular design means inverted mounting to a rig is possible

• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface

• Pearl chrome plating on pedal bases and arms

• Black powder coating on heel rest

• Custom-designed load cell sensor

• 12-bit precision

• Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)

• Heavy-duty elastomer stack with 65 Shore hardness

• Upgraded electronics

• USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)

• Manual calibration of Min and Max values possible, settings saved to the internal memory

• Pedals connect directly to CSL DD
